PGST
PIR motion detector immobilizer (PA92-1)
Quantity:
【Compatibility】:Works well with 433MHz home alarm system,compatible models such as: PG103, PG105, PG106, PG107,PG108,PG109, PG500.etc. (Please Notice: This door window sensor needed pairing with alarm panels,it cannot be used alone.)
DIY YOUR HOME ALARM SYSTEM
Product Parameters
Product features:
- Intelligent logic analysis to avoid fault alarm.
- Adopt CMOS low-power consumption microprocessor.Low voltage alert function.
- Anti-white light, anti-radiation interference function, so as to better detect illegal intrusion.
Technical Parameters
- Working voltage:3V AAA*2 alkaline battery
- Working current:≤25mA
- Emission frequency:315MHz/433MHZ(ASK)/868MHz(FSK)
- Emission power:≤10dB
- Emission distance:≥80m(open space)
- Detecting distance:8m-12m(25℃)
- Installation height:1.8-2.2M
- Detecting angle:110°
- Size:4.1*1.6*1in
Intelligent Logic Analysis,Real-time Notification

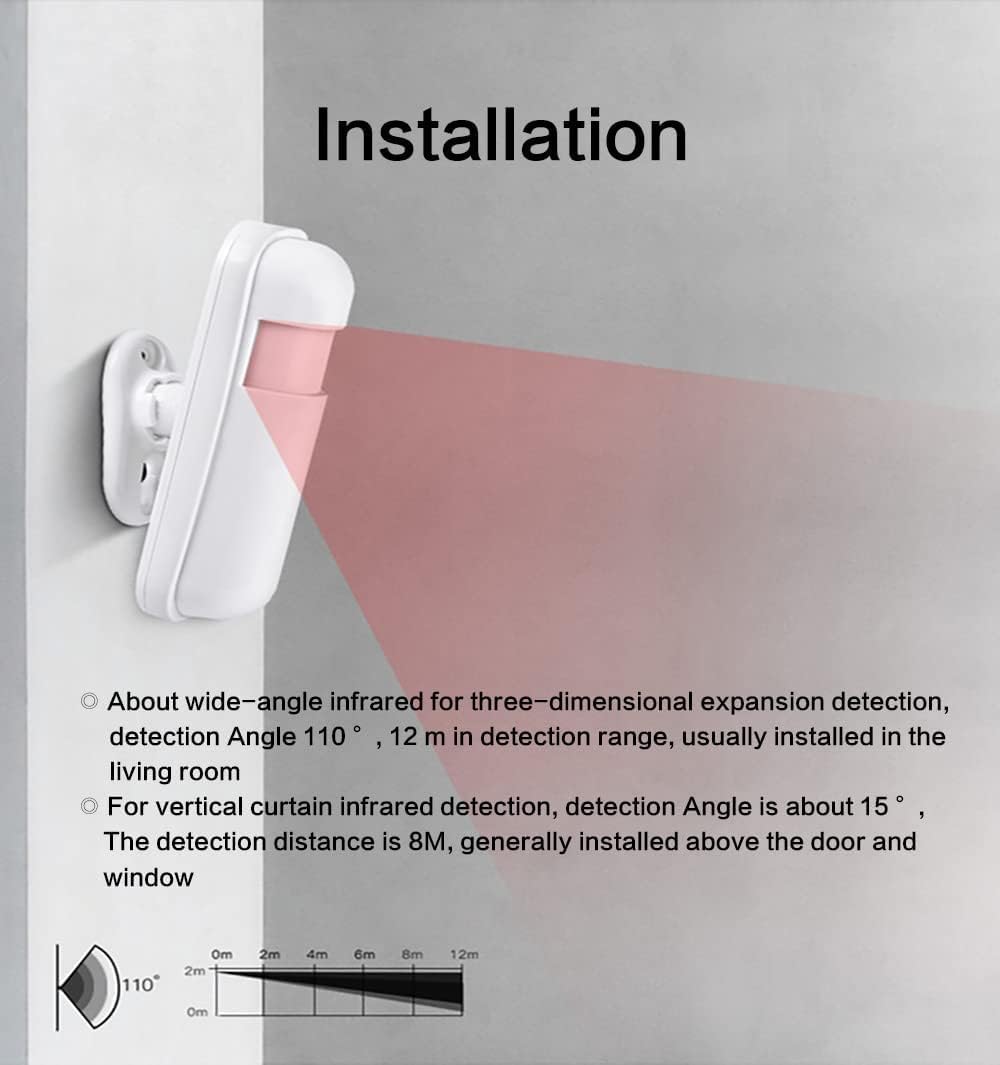

Easy to Install
- The sensor emits 110 ° infrared ray. The best tandem distance with the host is within 12 meters, the longest detection distance is about 80 meters(open field).
- Fixed with a bracket,mounts to room corners and flat walls,the best installation height is 1.8-2.2 meters. (Please do not install it outdoors)

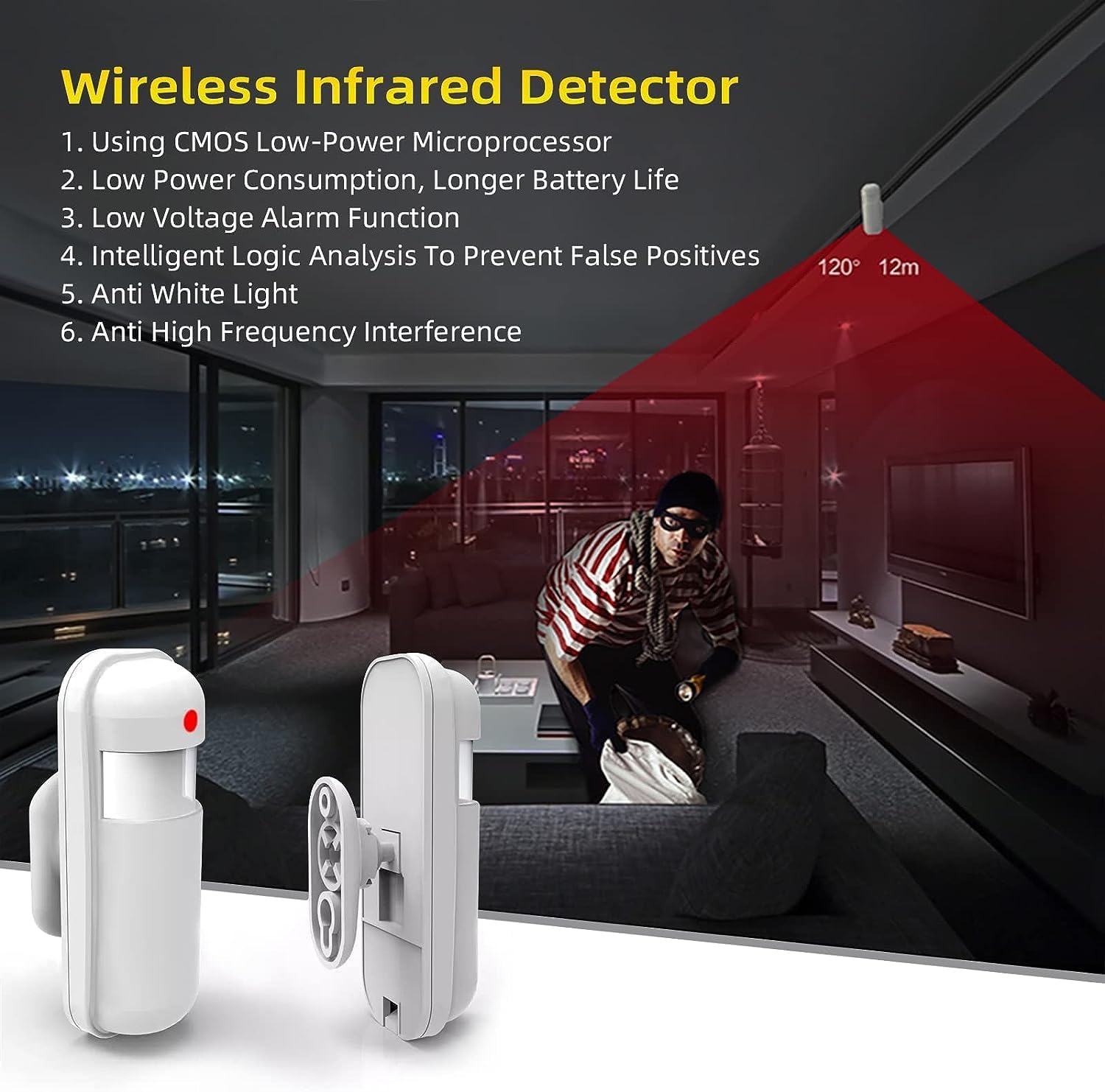

Features
- Our Wireless Infrared Motion Detector has the anti-white light, anti-radiation interference function, so as to better detect illegal intrusion.

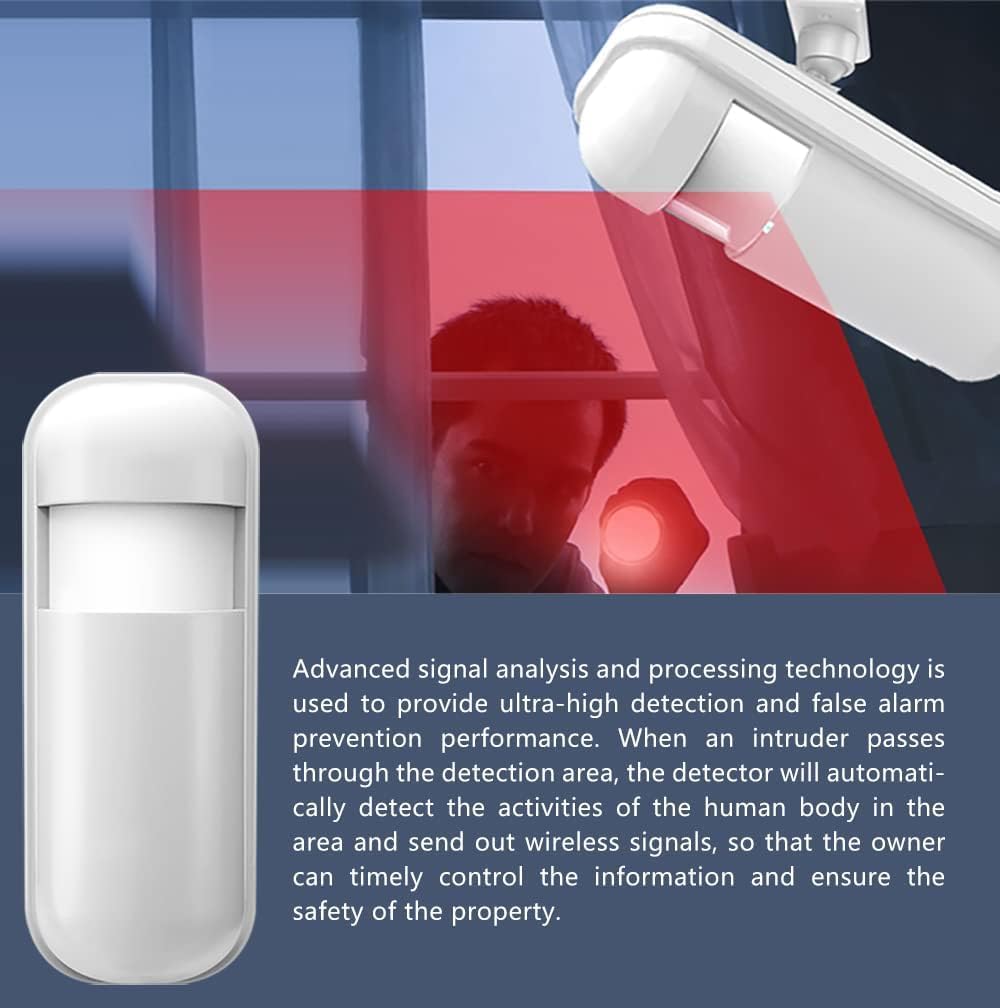

Intelligent Logic Analysis
- Using advanced signal analysis and processing technology, it provides ultra-high detection and anti-false alarm performance.

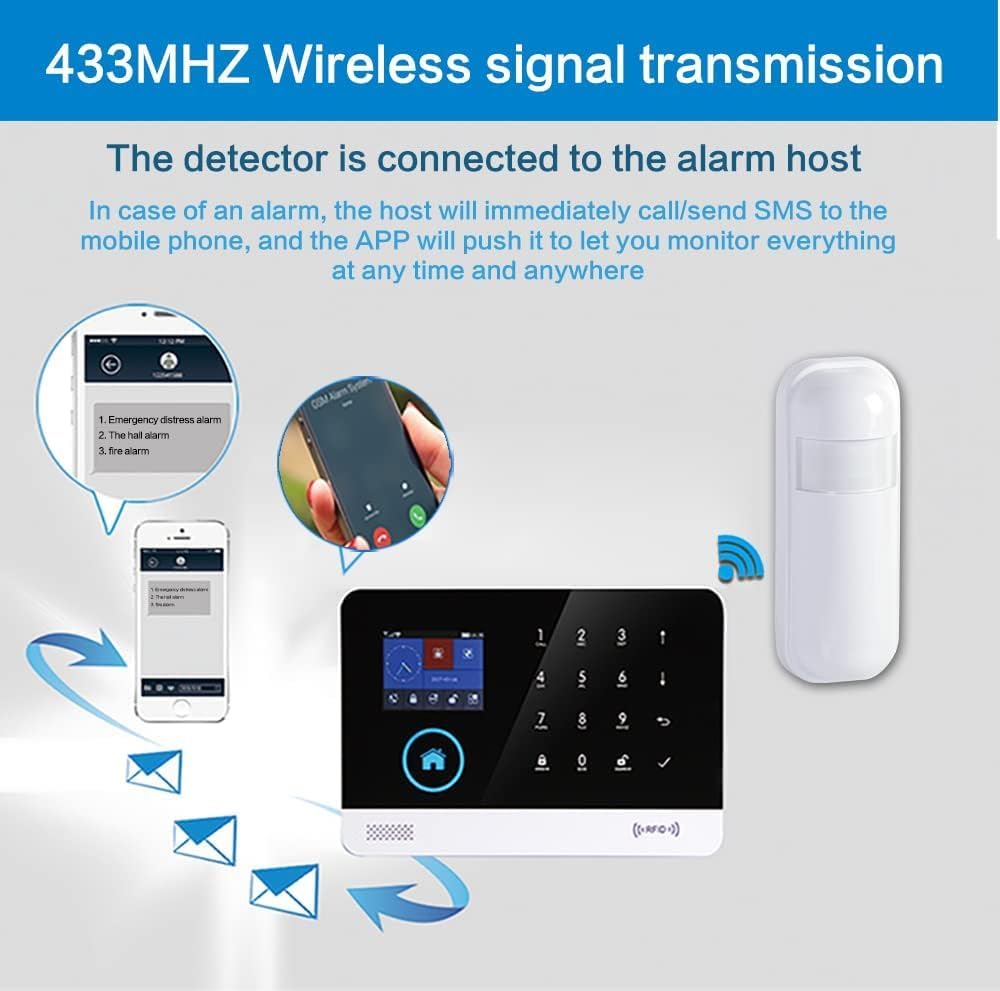

Real-time Notification
- When an intruder passes through the detection area, the detector will automatically detect human activities in the area, And transmit wireless signals to the outside, the head of the household can control the information in time to ensure the safety of property.
Compatibility
- Works well with 433MHz home alarm system,compatible models such as: PG103, PG105, PG106, PG107,PG108,PG109, PG500.etc. (Please Notice: This door window sensor needed pairing with alarm panels,it cannot be used alone.)
